README

Simplified theming of {ggplot2}, {lattice}, and {base} R graphics. In addition to providing a centralized approach to styling R graphics, {thematic} also enables automatic styling of R plots in Shiny, R Markdown, and RStudio.

Installation

install.packages("thematic")

install.packages("shiny")

install.packages("rmarkdown")

Using themes with custom fonts works best if you have {showtext} and/or {ragg} installed.

install.packages("showtext")
install.packages("ragg")

Overview

Shiny

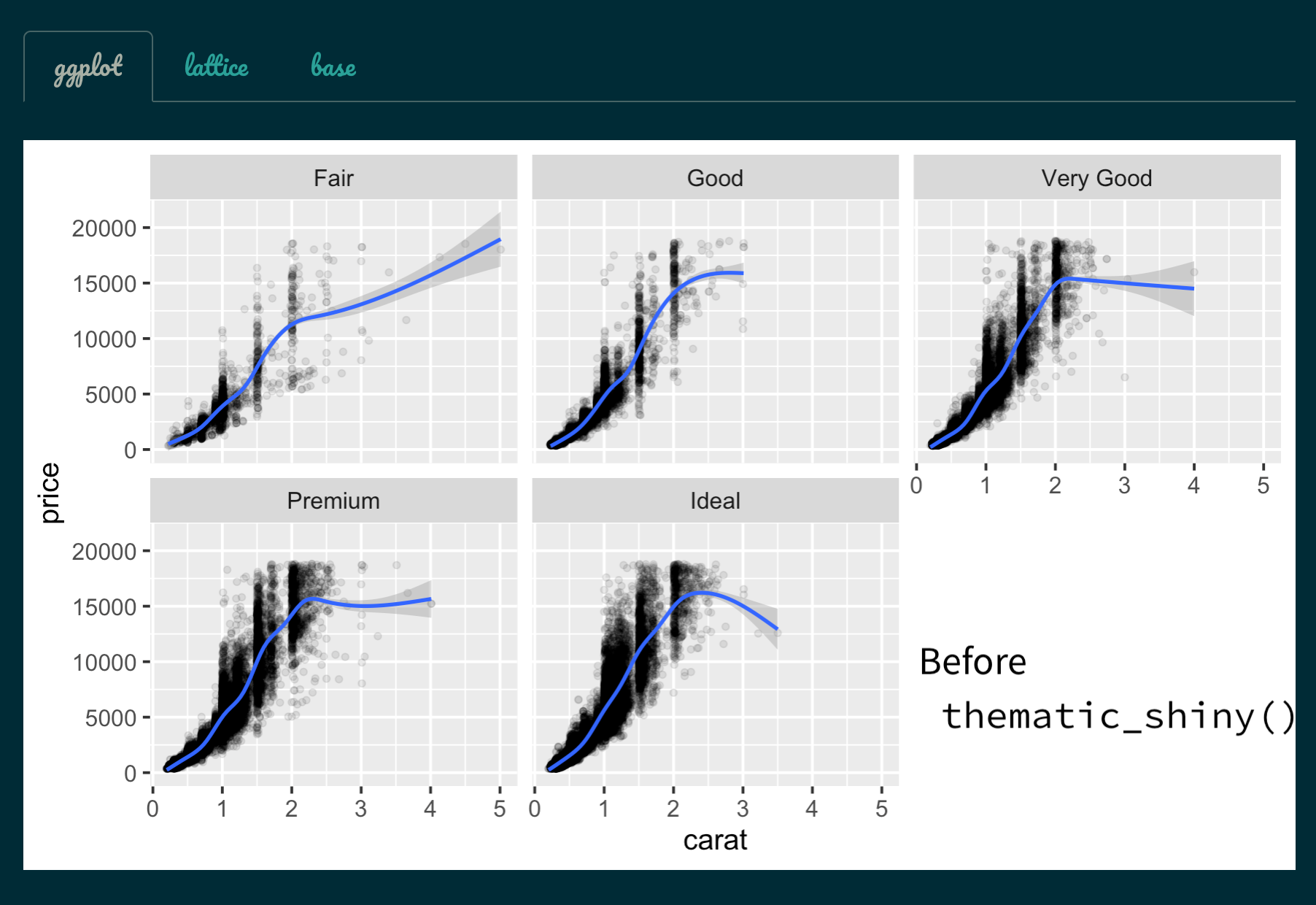

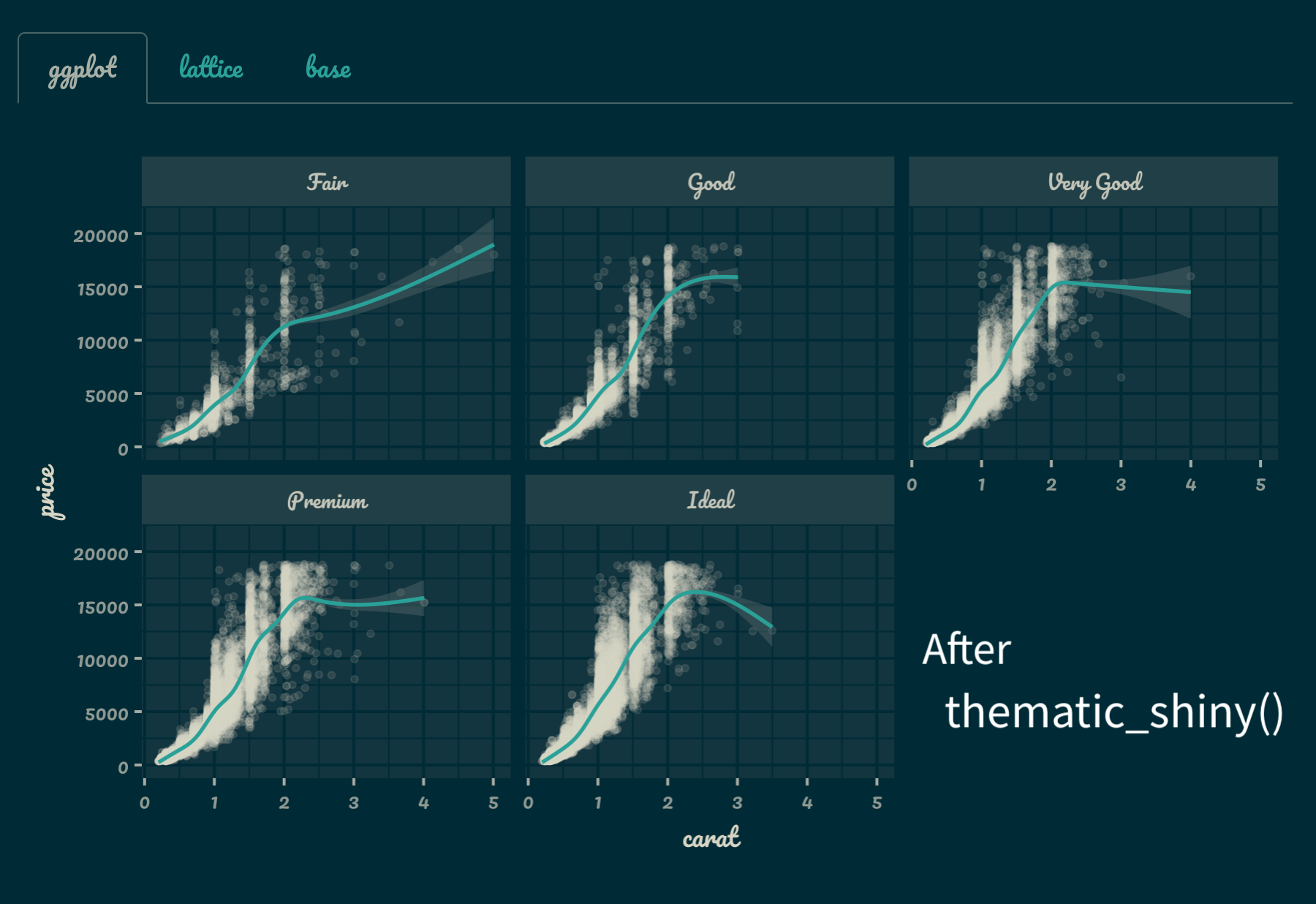

Call thematic_shiny() before launching a Shiny app to enable {thematic} for every plotOutput() inside the app. If no values are provided to thematic_shiny(), each plotOutput() uses the app’s CSS colors to inform new R plotting defaults. If the app uses Google Fonts (and you have {showtext} and/or {ragg} installed), you may safely provide font = "auto" to thematic_shiny(), which also translates CSS fonts to R. Here’s an example with the Pacifico font:

library(shiny)
library(ggplot2)
library(thematic)
# In order for auto/custom fonts to work properly, you'll want
# either the ragg (or showtext) package installed
library(ragg)

# If you want `{ragg}` to handle the font rendering in a Shiny app
options(shiny.useragg = TRUE)

# Call thematic_shiny() prior to launching the app, to change
# R plot theming defaults for all the plots generated in the app
thematic_shiny(font = "auto")

ui <- fluidPage(
  # bslib makes it easy to customize CSS styles for things
  # rendered by the browser, like tabsetPanel()
  # https://rstudio.github.io/bslib
  theme = bslib::bs_theme(
    bg = "#002B36", fg = "#EEE8D5", primary = "#2AA198",
    # bslib also makes it easy to import CSS fonts
    base_font = bslib::font_google("Pacifico")
  ),
  tabsetPanel(
    type = "pills",
    tabPanel("ggplot", plotOutput("ggplot")),
    tabPanel("lattice", plotOutput("lattice")),
    tabPanel("base", plotOutput("base"))
  )
)

server <- function(input, output) {
  output$ggplot <- renderPlot({
    ggplot(mtcars, aes(wt, mpg, label = rownames(mtcars), color = factor(cyl))) +
      geom_point() +
      ggrepel::geom_text_repel()
  })
  output$lattice <- renderPlot({
    lattice::show.settings()
  })
  output$base <- renderPlot({
    image(volcano, col = thematic_get_option("sequential"))
  })
}

shinyApp(ui, server)

RStudio

Call thematic_on() before generating plots inside RStudio to have all subsequent plots shown in the “Plots” viewing pane to reflect your RStudio theme. Note that thematic_on() enables {thematic} for the remainder of the R session, but you can use thematic_off() to disable (or thematic_theme() for one-off use of {thematic}). Here’s an example of how {thematic} can intelligently adapt each plot to the current RStudio theme:

R Markdown

Call thematic_rmd() before generating plots inside R Markdown to have all subsequent plots within the document reflect the relevant theme. In a static (i.e., non-runtime: shiny) R Markdown context, auto-theming only works with {bslib}-powered rmarkdown::html_document() (as in the example below), but in other situations you may also provide colors and fonts explicitly to thematic_rmd().

Custom theming

By default, {thematic} attempts to detect the relevant background, foreground, and accent colors. However, you may also specify these settings more directly by providing relevant color and fonts directly to thematic_on() (or thematic_shiny()/thematic_rmd()).

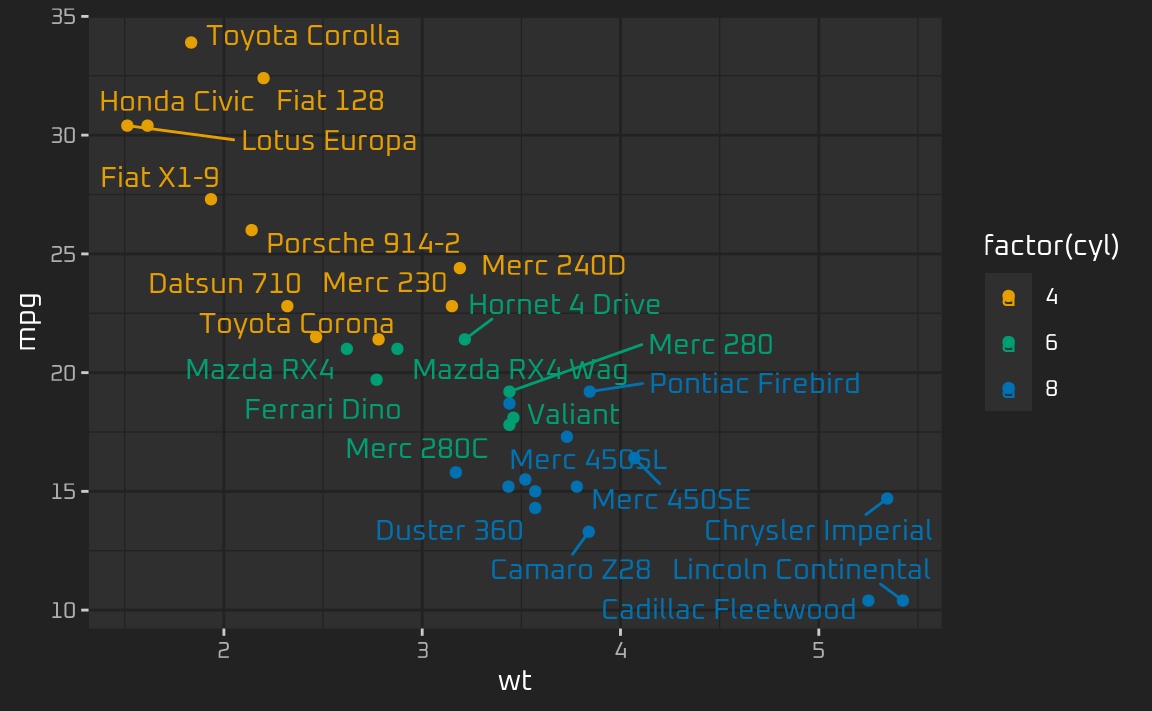

library(ggplot2)
thematic::thematic_on(bg = "#222222", fg = "white", accent = "#0CE3AC", font = "Oxanium")

ggp <- ggplot(mtcars, aes(wt, mpg, label = rownames(mtcars), color = factor(cyl))) +
  geom_point() +
  ggrepel::geom_text_repel()
ggp

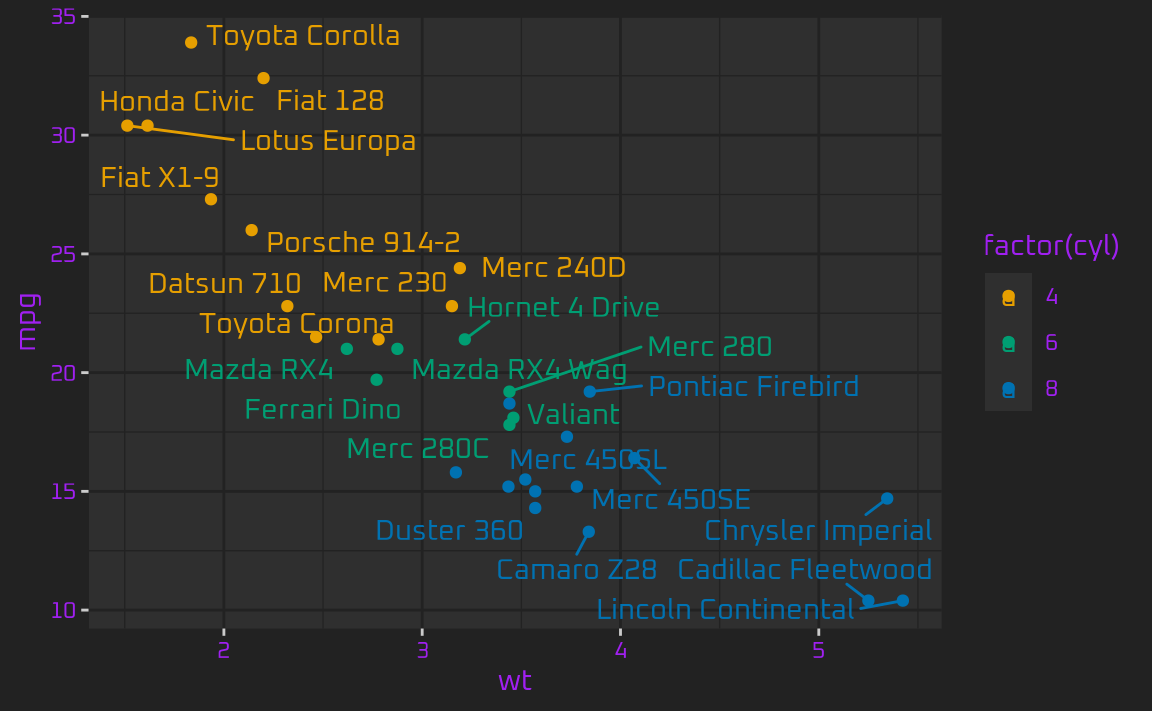

{thematic} works by setting new global defaults that can always be overridden with plot-specific theme()-ing code:

ggp + theme(text = element_text(colour = "purple"))

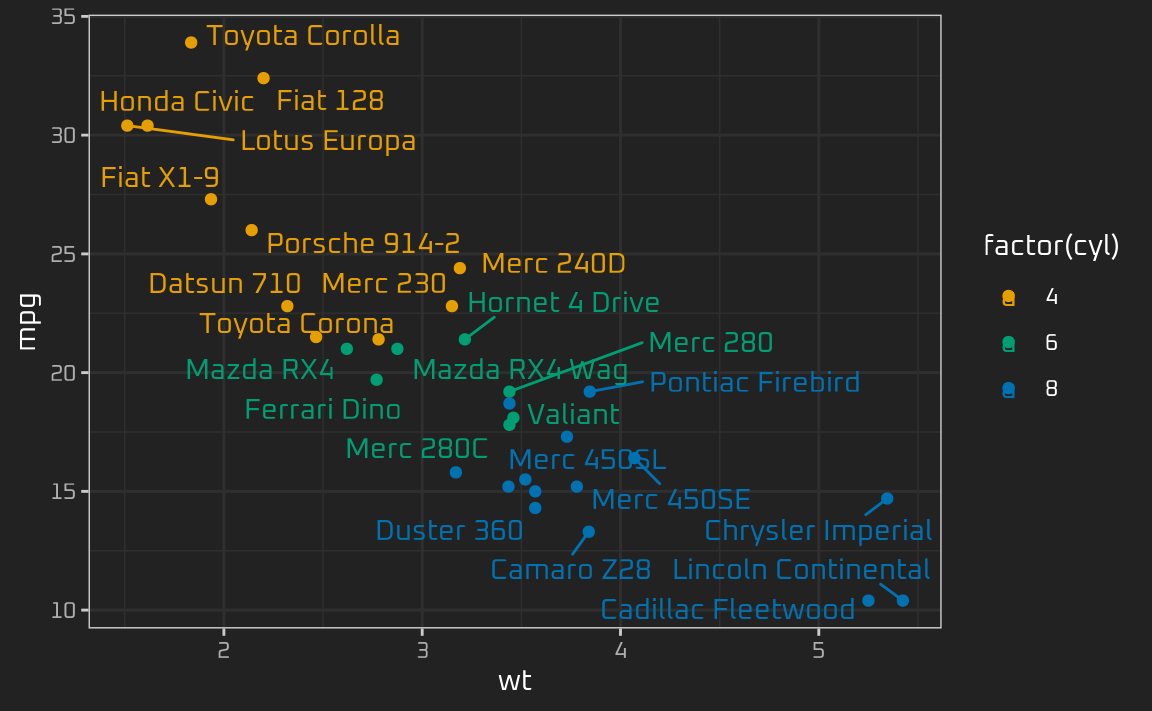

To use a “complete” {ggplot2} theme with {thematic} (e.g., theme_bw(), theme_minimal(), etc), use theme_set() to set the theme globally. This way {thematic} has the opportunity to preserve the complete theme’s styling semantics when changing global defaults (e.g., theme_bw() uses the same fill color for the panel and plot background, which is semantically different from the theme_gray() default):

theme_set(theme_bw())
ggp

In addition to setting new defaults for main colors and fonts, {thematic} also sets defaults for qualitative (and sequential) colorscales. See the custom themes article to learn more about how to customize those defaults.

Learn more

Run some examples

Below is a link to an RStudio Cloud instance with some ready to run {thematic} examples:

thematic
